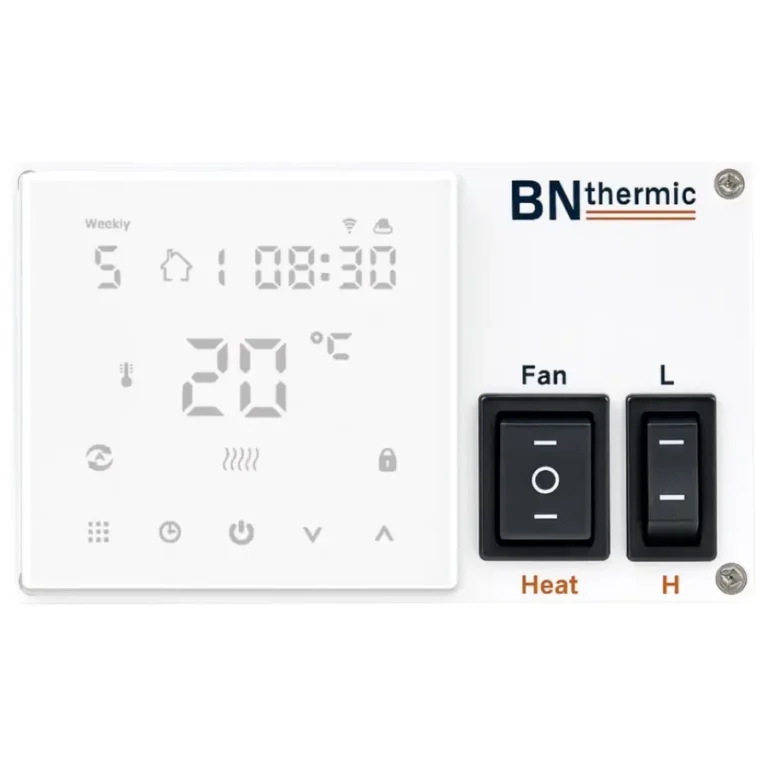

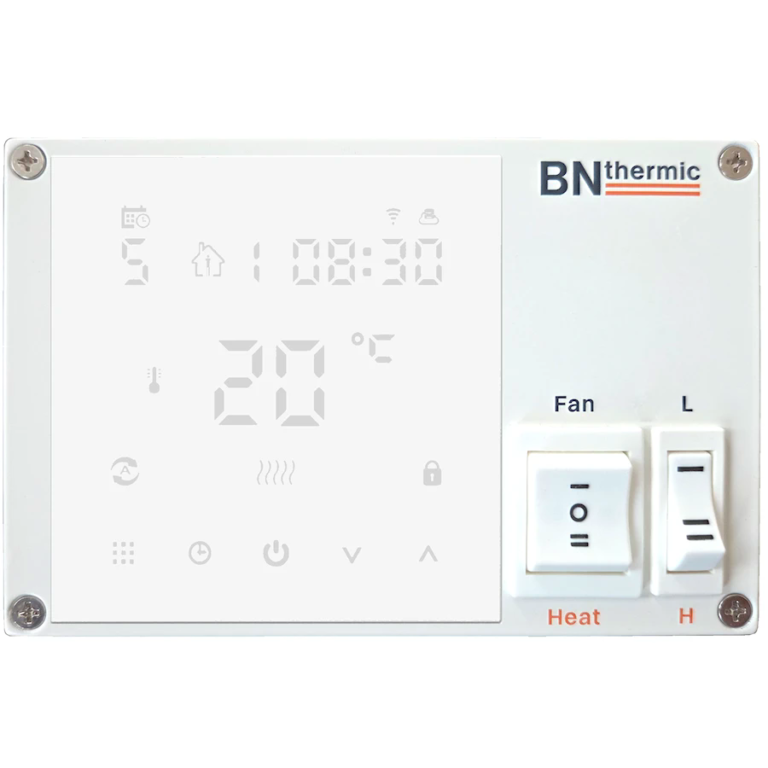

Programmable WiFi thermostat controller for BN Thermic fan heaters
Product Description
A versatile controller that provides 7-day thermsostatic control via an app plus on/off/high/low heat settings for our 800, SCH, SMH, CA or RH fan heaters.
- Obtain A Quote
-
If you know which controller you wish to purchase, please forward the part code to your preferred electrical wholesaler to obtain a quotation and a final price. Here’s a link to our ‘how to buy’ section for more info.
If you are unsure which controller is suitable for your project/heater(s) then please contact BN Thermic for assistance.
Please feel free to email us at sales@bnthermic.co.uk or send via a WhatsApp on 07518 574345.
- Technical Specification
-
Use With
For use with BN Thermic Heater Ranges:- 800 Series, SCHG, SMH, RH, CA
Colour / FinishWhite
MountingSurface mounting. Comes pre-drilled with holes in the back that allow direct mounting to single or double recessed boxes or for screws to secure to a wall.
Voltage Supply230V supplied from the Heater
Temperature Range (thermostat)1°C to 45°C (Default 5°C to 30°C)
Programmable Periods7 Days same, 6+1 Day or 5+2 Day (Default 5+2 Day) 6 Programs per day
DisplayTouch Screen + back lit screen
Mode SwitchesLow Heat / High Heat / Off / Fan Only (Heat only on when thermostat allows)
Tamper ResistantFacility for locking all thermostat buttons or all thermostat buttons except “On / Off” button. Note: Mode switch on front still operates for “Fan Only” when thermostat does not require heat.
AppFree app for iOS or Android phone
Remote Sensor (Optional)CXS, CXSIP, BBS and BBSIP (IP versions are IP65 rated)
Dimensions95mm (H) x 145mm (W) x 66mm (D)
Ingress ProtectionIP30
Special FeaturesCan be used without app
Supplied with 1 x M20 Cable Gland (white) - FAQs
-
-
What is an electrical wholesaler?
-
Electrical wholesalers are distributers of electrical goods that are dotted around the UK on high streets and industrial estates. Each wholesaler has a trade counter which you can pop into and speak with an expert.
-
Can we not buy direct from BN Thermic?
-
We sell exclusively through electrical wholesalers and never sell direct to a customer. The process is no different to buying baked beans. You buy baked beans from the supermarket, not direct with the manufacturer.
-
When will I receive my goods?
-
Very simple – we ship goods next day. Any order placed with a wholesaler by 3pm will be delivered the next working day. We operate out of a 175,000ft3 premises and have excellent stock levels. (We deliver next day to UK mainland addresses – export lead times are dealt with on an ad hoc basis)
-
Can BN Thermic help me find a wholesaler?
-
We certainly can. If you send us your post code we will locate, contact and prep your nearest wholesaler with all the details of your project. Our aim is to make the process as easy as possible. You can reach us on 01293 547 361, sales@bnthermic.co.uk or WhatsApp us on 07518 574345.
-
