TX Explosion Proof Tubular Heaters

TX Explosion Proof Tubular Heaters
ATEX Certified
  • ATEX Certified for use in Hazardous Areas
  • Suitable for Zone 1 and Zone 2 areas (gas) and Zone 21 and Zone 22 areas (dusts)
  • Widely used in the petrochemical industry

Range & Prices

The prices shown are list prices and perfectly safe to use for budget purposes. Contact your electrical wholesaler for final prices.


Model T Class kW Voltage Length Optional Guard List Price
TXT3-05 T3 0.5 230V 1ph 850mm TXG-01 £2002.00
TXT3-10 T3 1.0 230V 1ph 1450mm TXG-02 £2077.00
TXT3-15 T3 1.5 230V 1ph 2050mm TXG-01 + TXG-02 £2286.00

Optional Guards

TXG guards are recommended for installations where personnel have access to heaters.  The guards are open ended allowing more than one guard to be used to protect a single heater.

Model Length List Price
TXG-01 730mm £75.00
TXG-02 1330mm £92.00


Model Description List Price
TXST-01 Wall-Mounted Thermostat 16A T6 (hazardous gas only) £1043.00

All TX heaters are available from stock with next day delivery

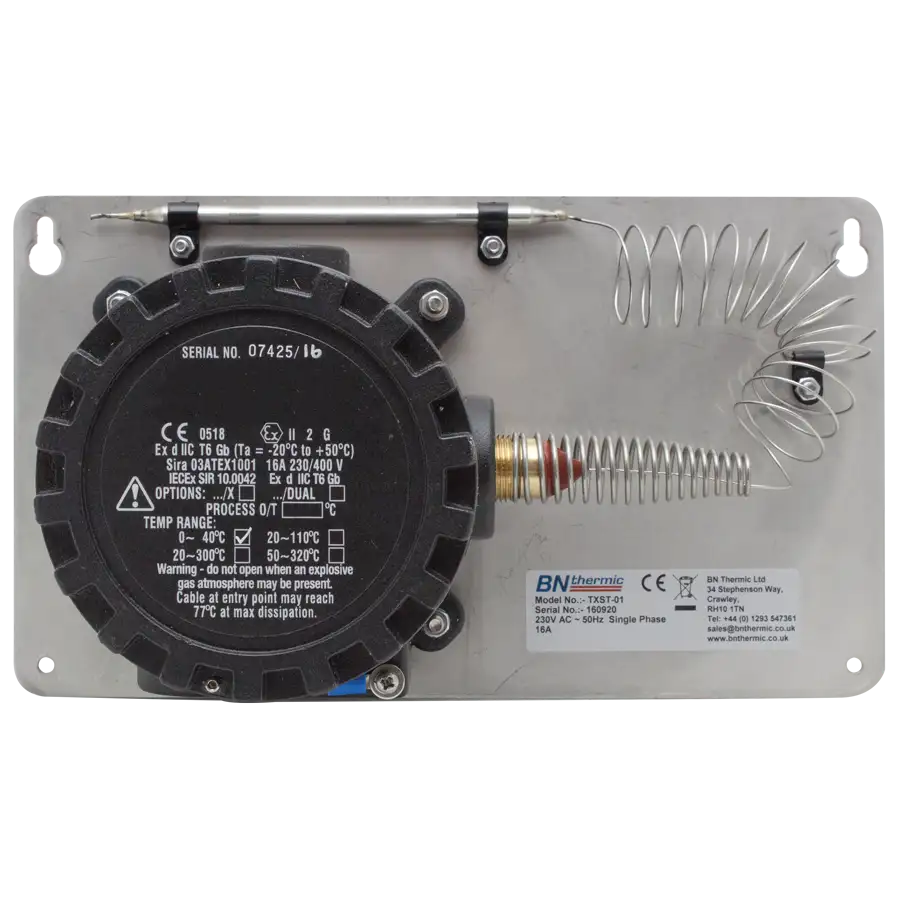

TXST-01 ATEX approved thermostat for use with hazardous gases

TXST-01 ATEX approved thermostat for use with hazardous gases

Technical Specification

Construction Material Steel
Finish Grey epoxy coating
Cable Entry 1 x M20 (cable gland not supplied)
Heating Element Nickel chrome resistance wire would onto ceramic formers
Height 157mm
Width 100mm
Mounting Position Horizontal on wall or floor
Fixing Slots 30mm x 10mm at 90˚ to heater length
Fixing Slot Centres Overall heater length – 100mm
Ingress Protection IP66
Voltage Supply 230V 1ph
Minimum Ambient Temperature (operating) -30˚C
Maximum Ambient Temperature (operating) +40˚C
Recommended Clearances 105mm from wall
900mm from ceiling
Approval ATEX
Equipment Protection Level Gb (gas) Db (dust)
Temperature Classification T3
Maximum Surface Temperature 200˚C
Zones Zones 1 and 2 (gas)
Zones 21 and 22 (dust)
Groups Group IIC (gas)
Group IIIC(dust)
Model T Class kW Length Weight Optional Safety Guard
TXT3-05 T3 0.5 850mm 11.5kg TXG-01
TXT3-10 T3 1.0 1450mm 16kg TXG-02
TXT3-15 T3 1.5 2050mm 19.5kg TXG-01 + TXG-02
TX ATEX approved heaters installed in a hazardous area

TX ATEX approved heaters installed in a hazardous area

Optional Guards

  • Galvanised steel mesh
  • Recommended for installations where personnel have access to heaters.
  • Open ended allowing more than one guard to be used to protect a single heater
  • Guards should be positioned so that the finned section of the heater is covered.  It is not necessary to cover the terminal enclosure
Model Length Width Height
TXG-01 730mm 150mm 180mm
TXG-02 1330mm 150mm 180mm


If you would like the experts at BN Thermic to select a suitable heating for your application, please click here to access our enquiry form.  Simply provide as much information as you have available and we will respond with a detailed proposal.

Enquiry Form

Check Suitability of a TX heater for your Area

The following data applies to all standard models in the TX range.  Before selecting a specific model you should check that the heater is suitable for the environment.  We also suggest that you download and read the TX instructions.

If the standard heaters are not suitable, please contact our Customer Service Department to discuss the options available.

Selecting a Specific Heater

TX heaters are suitable for maintaining background heat or comfort heat in industrial buildings.

In simple terms the output of the TX heater or heaters must be greater than the heat losses from the building during periods of cold weather.  A small amount of heat is lost through the walls, ceilings and floors with more significant losses through windows and doors.

To estimate the heat loss from your building you may like to use our heat loss tool

Heat Calculator

The estimated heat loss figure is the absolute minimum kW output that you should consider installing.  We would suggest adding approximately 50% to this figure to allow for an acceptable warm up time in cold conditions as well as making allowances for exceptional weather conditions and possible errors in the original data used in the estimate.

Having established the minimum kW output required, select the minimum number of heaters needed to meet the kW requirement.

The use of TXG safety guards is always recommended where personnel can access the heaters.
