- ESP radiant cassettes provide an extremely economical method of heating buildings with high ceilings
- Typical applications include sports halls, community halls and squash courts
- ESP radiant cassettes provide economic heating without the draughts and noise associated with fan heaters or the light output associated with shortwave radiant heaters
- ESP radiant cassettes have a smart, sophisticated appearance and yet are extremely robust
- Control multiple cassettes using
PC Control Box
Range & Prices
The prices shown are list prices and are perfectly safe to use for budget purposes. Contact your electrical wholesaler for final prices.
| Model | kW | Volts | Recommended Mounting Height (m) | List Price | |
| Min | Max | ||||
| ESP2-12 | 1.2 | 230/1 | 3.0 | 4.0 | £470.00 |
| ESP2-18 | 1.8 | 230/1 | 3.5 | 6.0 | £648.00 |
| ESP2-24 | 2.4 | 230/1 | 3.5 | 6.0 | £680.00 |
| ESP2-30 | 3.0 | 230/1 or 400/3 | 3.5 | 8.0 | £850.00 |
| ESP2-36 | 3.6 | 230/1 or 400/3 | 3.5 | 8.0 | £893.00 |
The ESP range providing an economic means of heating large areas
Optional Wall Brackets
| Model | Description | List Price |
| ESP2-B | Pair of angle adjustable brackets suitable for all ESP2 models | £56.00 |
Controls
Typically, primary comfort heat control is provided by a wall-mounted programmable thermostat. Depending on the quantity and type of cassettes installed and the voltage supply, the thermostat can switch a group of heaters directly or via a suitably rated contactor. For larger installations see our PC radiant heater control box. (The control box is designed to make multi-heater installs quicker and easier with all heaters controlled from a single point)
| Type | Description | Model | List Price |
| Thermostat | Electronic programmable thermostat with optimum start function 6A | PROSTAT2 | £121.00 |

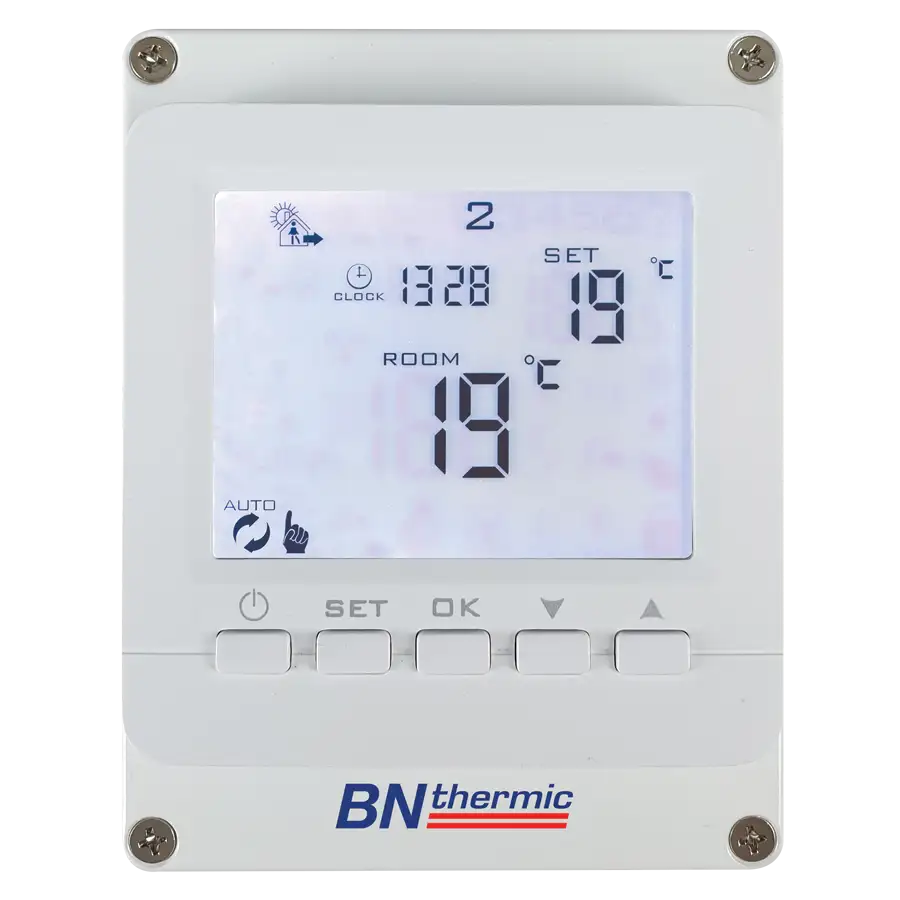

| Thermostat | Electronic programmable thermostat with optimum start and open window detection functions (can be used with remote-mounted sensor) 16A | RT16 | £144.00 |
| Thermostat | As RT16 except 26A | RT26 | £177.00 |
| Thermostat | WiFi programmable thermostat (can be used with remote mounted sensor) 16A – Download free app | WT16 | £222.00 |
| Thermostat | As WT16 except 26A | WT26 | £269.00 |
| Remote Sensor | Optional remote-mounted ‘black bulb’ temperature sensor for use with RT16 and RT26 programmable thermostat | BBS | £73.00 |
| Contactor | 32A 3-pole | CON-32 | £60.00 |
| Contactor | 50A 3-pole | CON-50 | £78.00 |
| Contactor | 80A 3-pole | CON-80 | £176.00 |
| Contactor | Enclosure for CON-32 and CON-50 | ENCL-D | £32.00 |
The engineers at BN Thermic are always available to design a bespoke control scheme.
ESP2 cassettes can add to the aesthetic of modern commercial premises
Technical Specification
| Colour: | White RAL9010 |
| Finish: | Epoxy polyester powder coating |
| Construction: | Steel case with terminal enclosure located at one end |
| Heating Element: | Metal-sheathed heating elements embedded in specially treated aluminium heat emitters |
| Installation: | Ceiling mounting using brackets provided. The brackets also provide secure fixing points for suspension Optional adjustable angle wall mount bracket (model ESP2-B) Suitable for buildings with ceiling heights up to 10m |
| Guarantee: | 1 year |
Cassettes omit no light or noise output making them ideal for heating theatres, class rooms and performance spaces
Performance Data
| Model | kW | Volts | Recommended Mounting Height (m) |
Dimensions (mm) | Weight (kg) | |||
| Min | Max | L | W | D | ||||
| ESP2-12 | 1.2 | 230/1 | 3.0 | 4.0 | 1550 | 150 | 60 | 5.8 |
| ESP2-18 | 1.8 | 230/1 | 3.5 | 6.0 | 1550 | 250 | 60 | 9.9 |
| ESP2-24 | 2.4 | 230/1 | 3.5 | 6.0 | 1550 | 250 | 60 | 9.9 |
| ESP2-30 | 3.0 | 230/1 or 400/3 | 3.5 | 8.0 | 1550 | 350 | 60 | 13.9 |
| ESP2-36 | 3.6 | 230/1 or 400/3 | 3.5 | 8.0 | 1550 | 350 | 60 | 13.9 |
Radiant cassettes are incredibly unobtrusive making them ideal for heating assembly halls, sports halls and class rooms
Radiant cassettes free up wall space making them ideal for village halls, gymnasiums and classrooms
How it Works
ESP Radiant Cassettes are designed to heat commercial and industrial spaces and are especially suited to buildings with high ceilings such as sports halls.
The cassettes are generally ceiling-mounted or suspended at a high level in a grid formation to give good area coverage. Alternatively, they can be wall-mounted using the optional wall bracket. Once switched on, the radiant cassettes emit long-wave radiant energy providing the quickest means of heating a space.
ESP radiant cassettes are the most economical means of heating larger spaces. Savings of up to 30% can be made when compared to conventional convection-based heating systems. There are two reasons for this:
- Temperature Gradient. When using fan heaters to heat a large space a typical temperature gradient of 2.5°C per metre would be expected. The equivalent figure for a building heated with energy-saving radiant cassettes is 0.3°C. Therefore in a 5m sports hall, the air temperature at a high level would be almost 15°C lower when using energy-saving radiant cassettes.
- Radiant effect. In a building heated with energy-saving Radiant Panels, the experienced temperature can be as much as 4°C warmer than the actual air temperature. This means that the thermostat can be set up to 4°C lower than with a conventional heating system whilst still maintaining a comfortable temperature.
Selection
If you would like the experts at BN Thermic to select a suitable heating for your application, please click below to access our enquiry form. Simply provide as much information as you have available and we will respond with a detailed proposal.
For maximum economy and performance, your selection needs to meet two requirements:
- Sufficient kW output
- Correct cassette distribution
Estimating kW Output
In simple terms, the output of the installed ESP radiant cassettes must be greater than the heat losses from the building during periods of cold weather. A small amount of heat is lost through the walls, ceilings and floors with more significant losses through windows and doors.
To estimate the heat loss from your building you may like to use our heat calculation tool
The estimated heat loss figure is the absolute minimum kW output that you should consider installing. We would suggest adding approximately 50% to this figure to allow for an acceptable warm-up time in cold conditions as well as making allowances for exceptional weather conditions and possible errors in the original data used in the estimate.
Correct Cassette Distribution
ESP radiant cassettes can be ceiling-mounted or suspended at a high level. For the lowest capital cost, we suggest using the highest practical mounting height, whilst using the minimum possible number of radiant panels needed to achieve the estimated kW requirement. Ensure that the distance between individual cassettes does not exceed the distance between the cassettes and the floor.
ESP Radiant Cassettes
suspended from the ceiling in an evenly spaced grid so that the distances between the cassettes
(A & B) are not greater than the distance between the cassettes and the floor.
Videos
Images
-
- The ESP2 radiant cassettes range
-
- ESP2 wall brackets
-
- ESP2 wall brackets mounted on a single element heater
-
- Rear view of a heater with wall brackets
Installation images
-
- Cassettes providing discreet comfort heat to a semi-permanent assembly hall
-
- Cassettes provide unobtrusive comfort heat to almost any commercial and industrial applications
-
- Cassettes omit no light output making them ideal for businesses who deal with fabrics or colors
-
- Cassettes omit no noise output making them ideal for performance spaces and sports halls
-
- Cassettes can be mounted up to 8m making them ideal for squash courts
-
- Cassettes can be easily surface mounted using the brackets provided
